Four Wires Drawing Machine For Copper Wire Drawing Inlet 1.2 To 2.0,Outlet 0.15 To 0.4mm

Product Categories

NEWLEAD WIRE AND CABLE MAKING EQUIPMENTS GROUP CO.,LTD

Contact Now

Name: Four Wires Drawing Machine For Copper Wire Drawing Inlet 12 To 20Outlet 015 To 04mm
Brand: NEWLEAD
Price: 50000 USD

Brand Name : NEWLEAD

Model Number : MWD/4

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : USD50000-100000

Payment Terms : Western Union

Supply Ability : 5 SETS PER MONTH

Packaging Details : WOODEN PLATES

Voltage : 380/415/440/220

Inlet diameter : 1.2-2.0

Outlet diameter : 0.15mm-0.4mm

Material : copper wire

Speed : Max 1800m/m

Wire Nos : 4

Contact Now

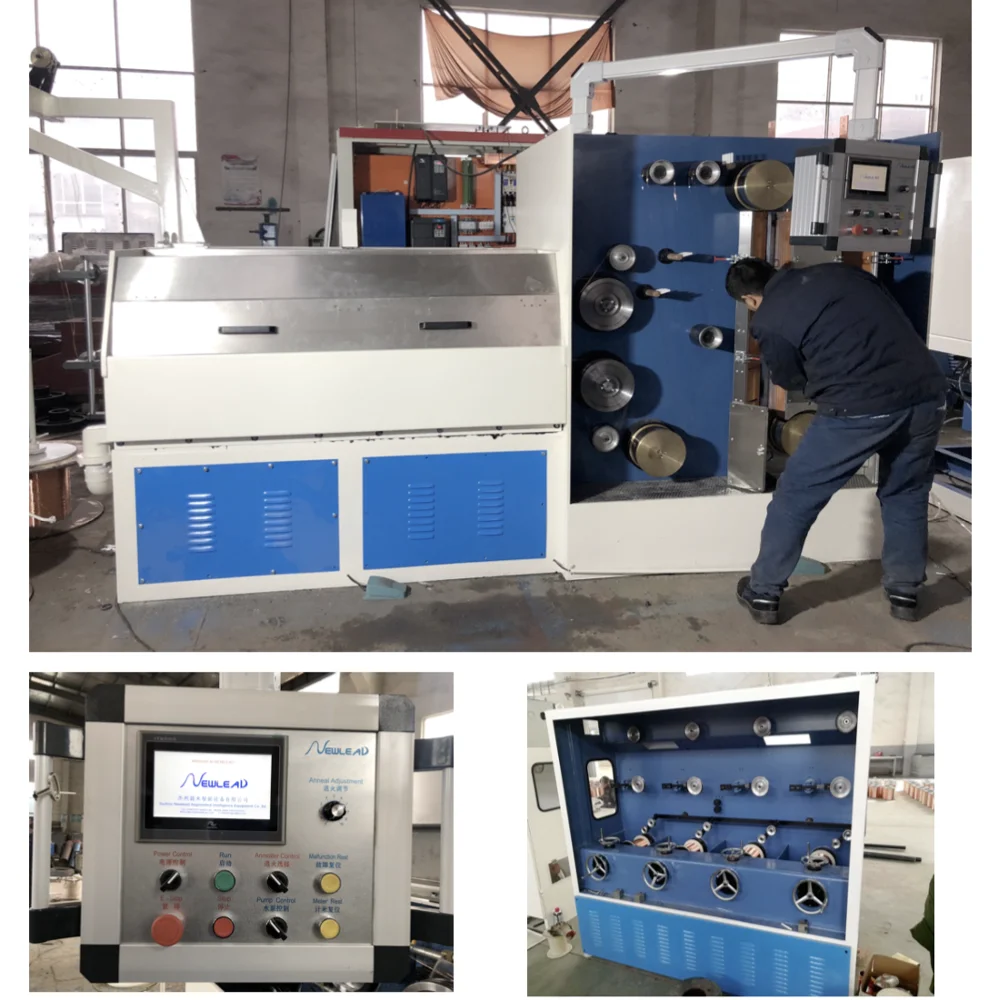

4 heads wire drawing machine

4 WIRES MULTI-WIRE DRAWING MACHINE WITH ONLINE ANNEALER AND PND630 TAKE UP(4 WIRES WINDING ON ONE 630 METAL BOBBIN)

Name	Parameter
Inlet diameter (mm)	1.2-2.05
Outlet diameter (mm)	4 wires 0.15-0.4mm;2 wires 0.4-0.6mm
Speed (m/min)	Max 1500
Capstan diameter (mm)	Max 220
Fix speed capstan diameter (mm)	220
Dies number	Max 21
Slip ratio of m/c	Last dies: 17%; Others: 15%.
Main motor (KW)	37
Traversing motor (W)	90
Take-up motor (KW)	15
Steam Generator (KW)	6
DC annealing current (A)	0~1200
DC annealing Voltage (V)	0~60
Bobbin specification	Φ630 metal bobbin or DIN200-250
Take-up & Bobbin loading Type	Pneumatic brake clamping
Capacity for wire receiving (Kg)	Max500
Dimension (mm) (LWH)	5000×1500×2000
Net Weight (Kg)	4500
Traversing type	Motor positive and negative reversing
Capstan cooling method	Spray type
Brake	Pneumatic brake
Installation power	110KW

Four Wires Drawing Machine For Copper Wire Drawing Inlet 1.2 To 2.0,Outlet 0.15 To 0.4mm

More Options

4 Heads 250mm plastic bobbins take up

Four Wires Drawing Machine For Copper Wire Drawing Inlet 1.2 To 2.0,Outlet 0.15 To 0.4mm
