Name : PV junction box

Usage : PV Solar

Capacity : 12A/15A

Material : Copper

Function : Connection

Warranty : 24 Months

Contact Now

Technical Parameter:

Junction Boxes for Use in Photovoltaic Modules and Panels

Product Model pvmh280
Rated Voltage IEC1500V/UL1500V
Rated Current 12/15A
Ribbons Width Max. 8mm
Glue Volume 24/50mL
Wire Size 4.0mm2/12AWG
Protection Degree IP68(1m,1h)
Safety Class Class Ⅱ
Flammability Class UL94-V0,5VA
Insulation Material PPO/PA66
Metal Material Copper
Overall Dimension 100*75*15mm
Temperature Range 一40℃~+85℃

PV Cable Extruder Machine

PV Solar cable extruder whole manufacturing production line solutions

Step 1,

Fine wire drawing machine. Inlet 1.2mm-1.6mm,Outlet 0.3mm

Step 2, Annealing and tinning machine to produce tinned copper wire 0.3mm

Step 3 630 Double twisting buncher to produce bunched 35/0.3,56/0.3,84/0.3

Step 4 70+90 PV solar cable extruder line

70+90mm PLC Extruder line

Application scope: apply to the production of PV cable (solar energy)

I. Equipment configuration:

No. Equipment name and specification Specification Quantity Function Remark1
1 Double spools throwing wire pay off Φ630 1 Payoff
2 Belts type tension controller Φ200 1
3 Vertical tension controller Φ300+300 1
4 High speed extruder Φ70mm*26D 1
5 Laser diameter Gauge LDG-25 1
6 Front water tank 2m+2m*2 1
7 Vertical tension controller Φ300 1
8 High speed extruder Φ90mm*26D 1
9 Laser diameter Gauge LDG-25 1
10 Temperature system control box PLC type 1
11 Warm water tank 2m 1
12 High speed printer Dynamics mixer 1
13 Double layer fixed water tank 4m+4m*2 1
14 Horizontal type storage accumulator 12m 1
15 Double capstans tractor Φ600mm 1
16 Spark test 15KV 1
17 Double spools take up Φ800mm 1
18 Crosshead U14 2
19 Screw 2
20 Butt welding tong 1
21 Free spare parts 1 set

Other project option

RV cable manufacturing whole line solutions making equipments power cable extruder

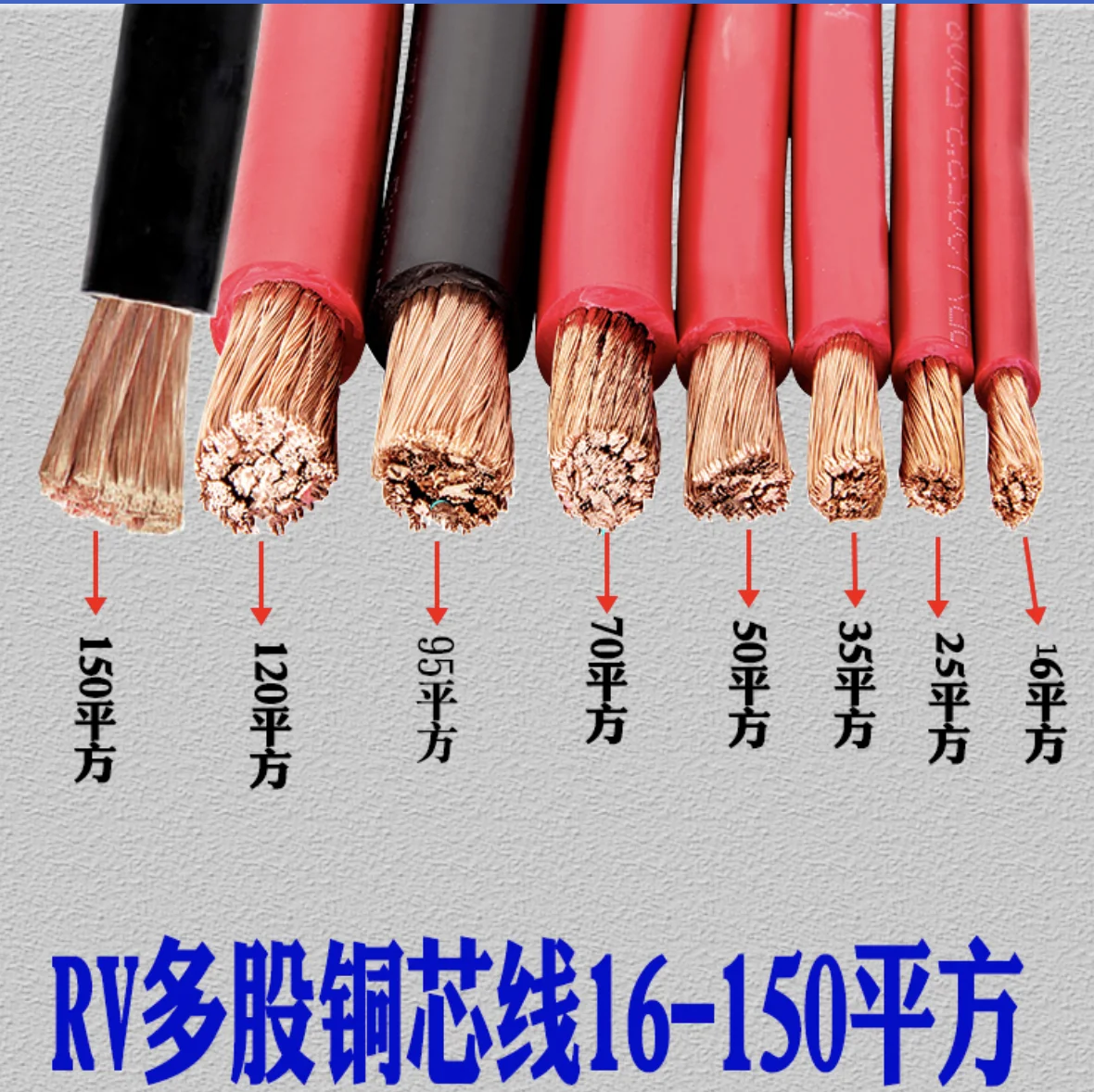

rv cable 1.pngRV CABLE 02.png

Step 1.

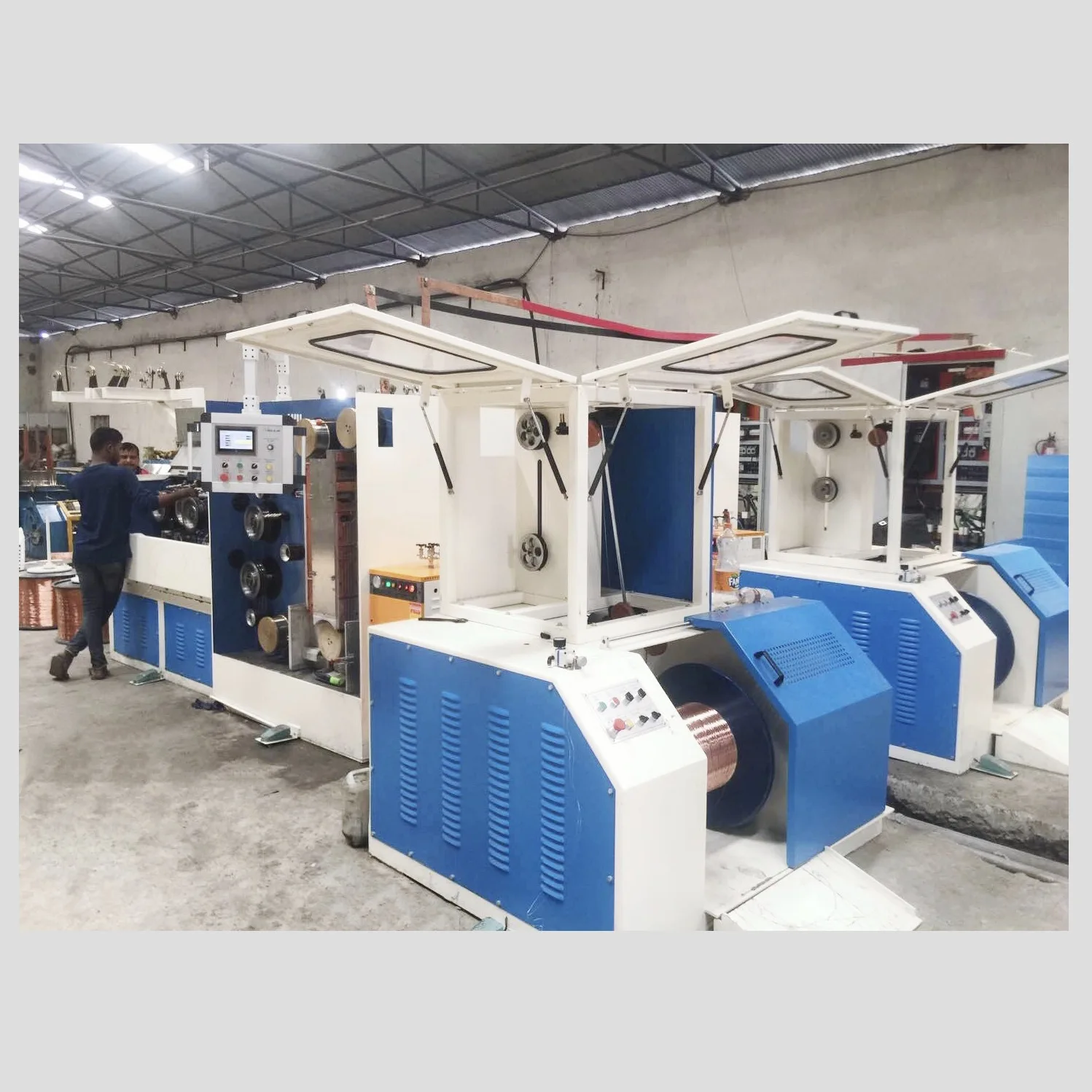

4 wires drawing machine to produce 0.24/0.25 annealed copper wire

4 wires drawing.png

Step 2

Wires bunching machine to produce bunched conductor

650DTB buncher.png

Step 3 70 PLC extruder to produce core cable

70 plc extruder.png

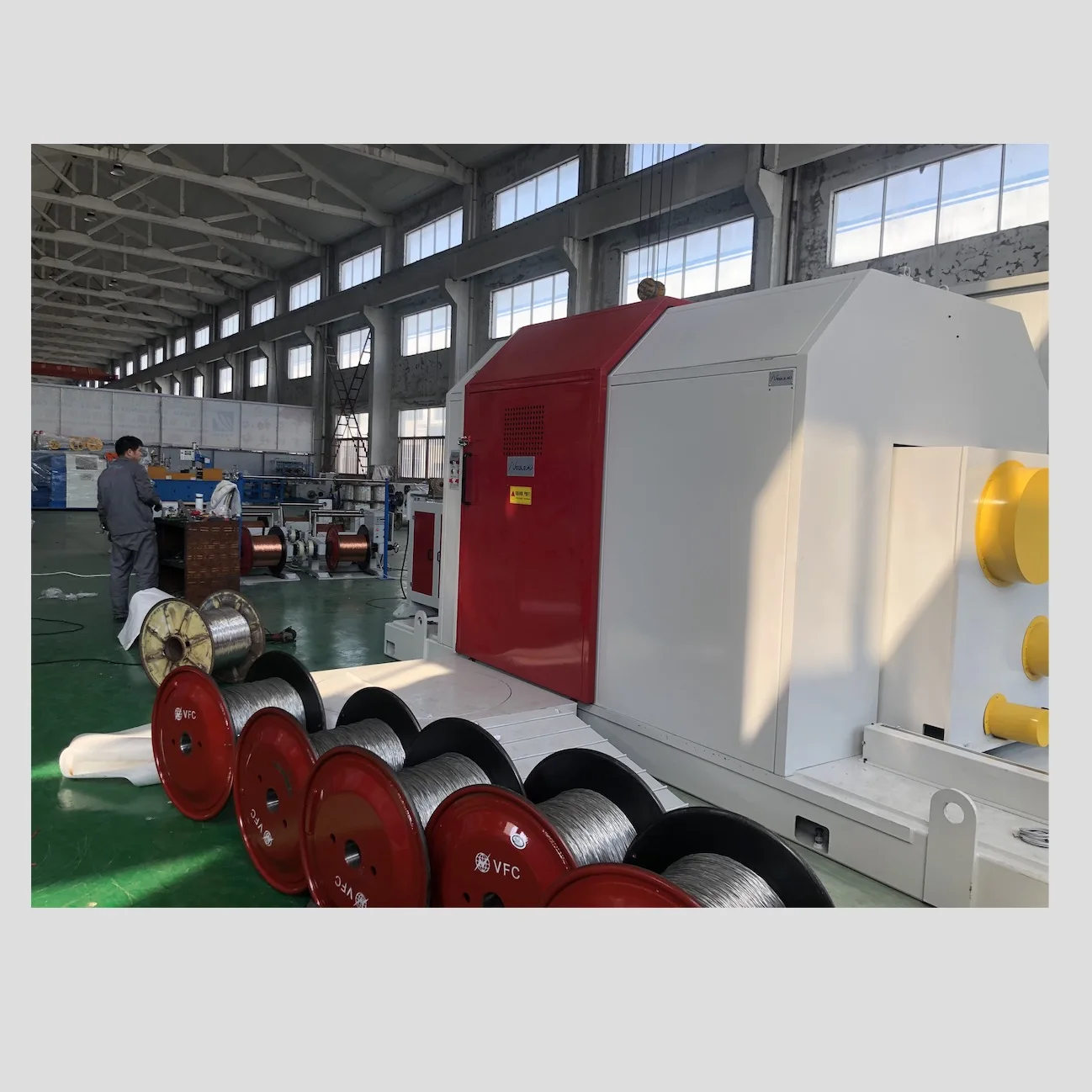

Step 4 1250 PLC cantilever type single twister to produce stranded 3/4 core cable

1250 Twister.png

Step 5 90 PLC Extruder to produce finished cable

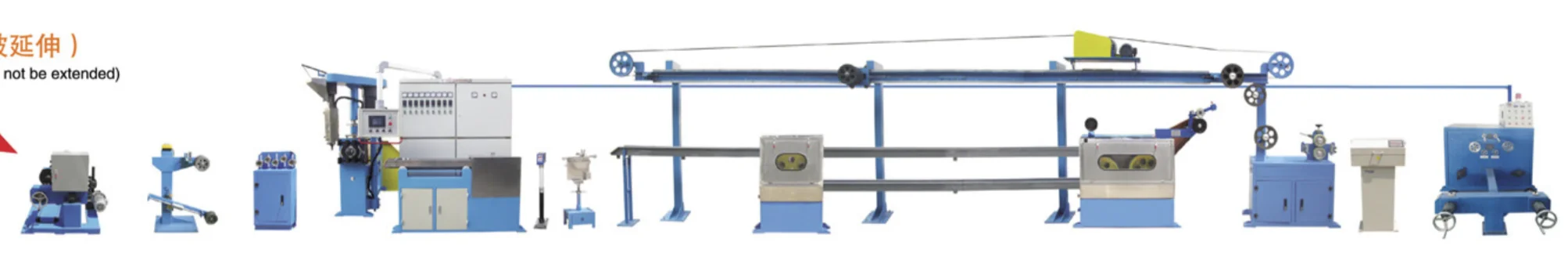

90mm PLC Extruder line

Application scope: apply to the production of PVC, PE, PP insulated wire

I. Equipment configuration:

No. Equipment name and specification Specification Brand Quantity Function Remark1 Remark2
1 Pay off Φ1250mm Two Payoff
2 Straightening table Φ100mm One Straighten wire Before coated
3 High speed extruder core Φ90×26Dmm One Extrude wire
4 Temperature system control box PLC type System control
5 Primary-secondary moving water trough 2M One Cooling wire
6 Single layer fixed water trough 8m One Cooling wire
7 Horizontal type storage accumulator 12M One Tension control, wire store
8 Double round capstan Φ600mm One Tract Cable
9 End-axle type take-up and row-line rack Φ1250mm One Winding cable With one unit coiling tray
10 High speed printer Dynamics mixer One Print outside Cable
11 Fixed centering crosshead U14 One Extrusion molding With one unit mold
12 Spare parts One set Equipment spare parts
13

Coating: standard color

14 Production-line direction: Left release Right retracting: Right release Left retracting:
15 Complete set of production-line installation length of the 25 to 28 meters (according to customer on-site sure)

General technical specifications:

1. Applicable conductor core wire diameter: Φ 0.2mm - Φ 6.0mm

2. Finished outer diameter: Φ 0.4mm - Φ 8.0mm

3. Minimum insulation thickness: 0.2mm

4. Output: 25kg / HR (head opening, FEP, PFA, ETFE)

5. Maximum outlet speed: 12-120m / min (depending on the finished outer diameter)

6. Machine center height: 1000mm
